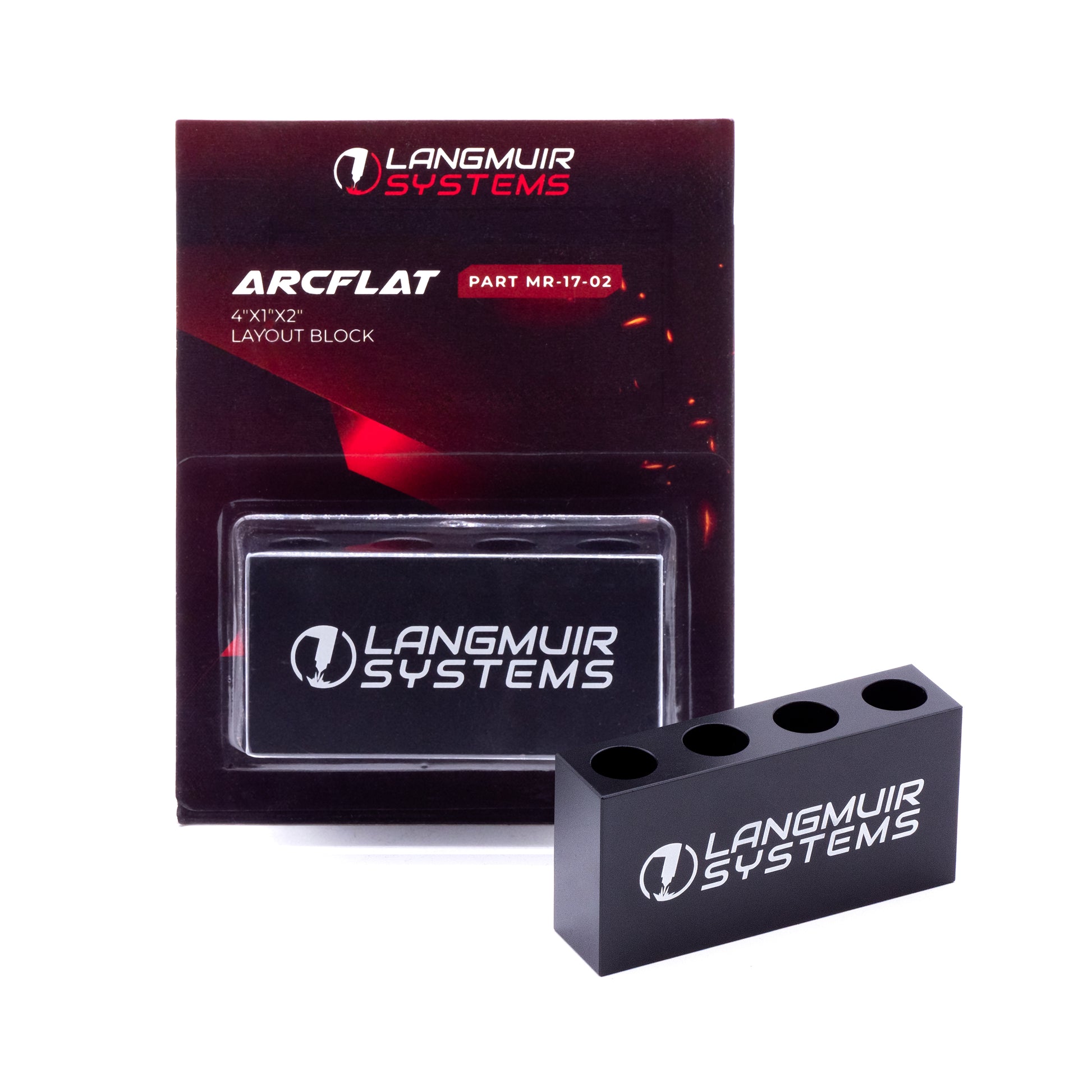

4" x 1" x 2" Layout Block

4" x 1" x 2" Layout Block

In Stock

Regular price $24.95 USD
Regular price Sale price $24.95 USD
Sale Sold out
Shipping calculated at checkout.

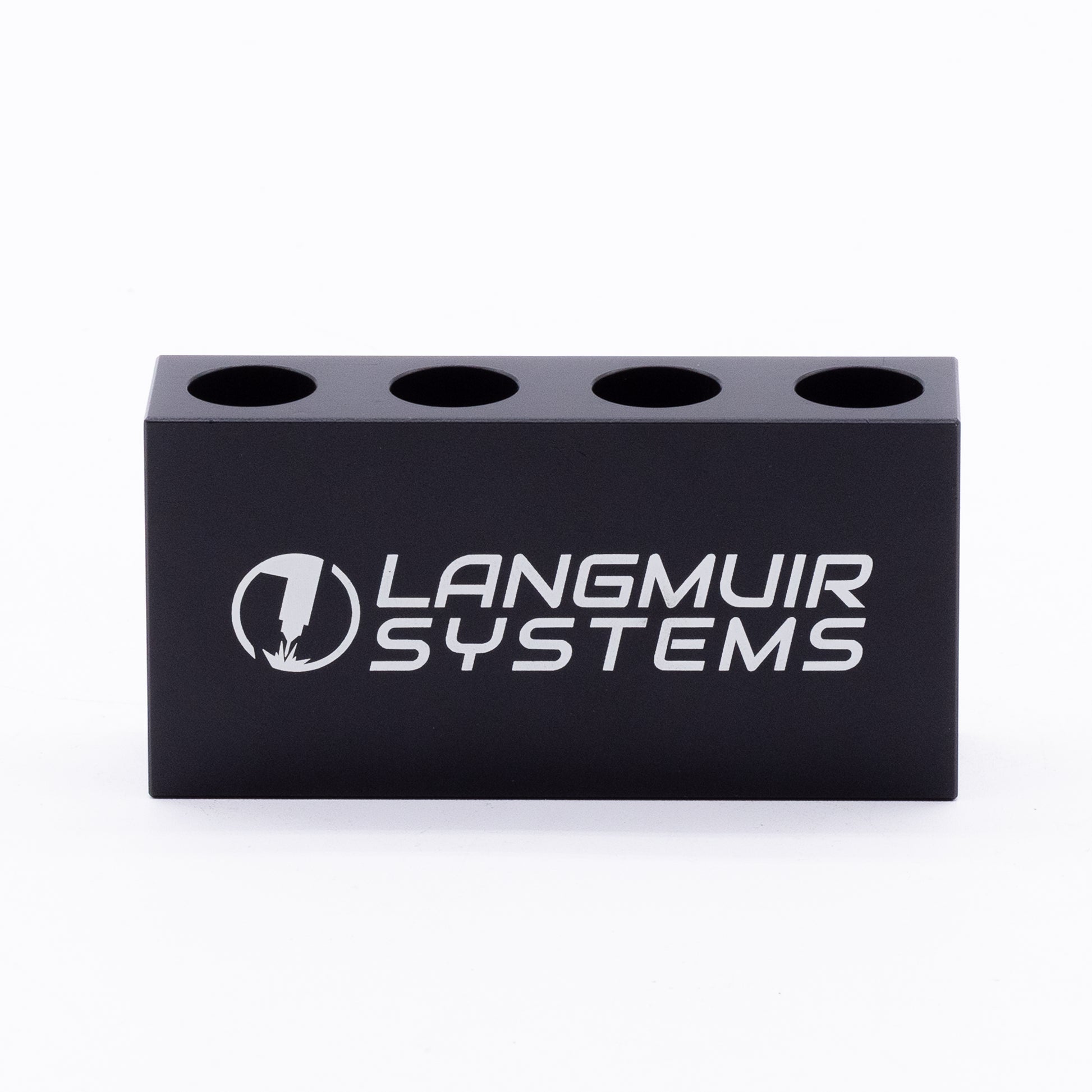

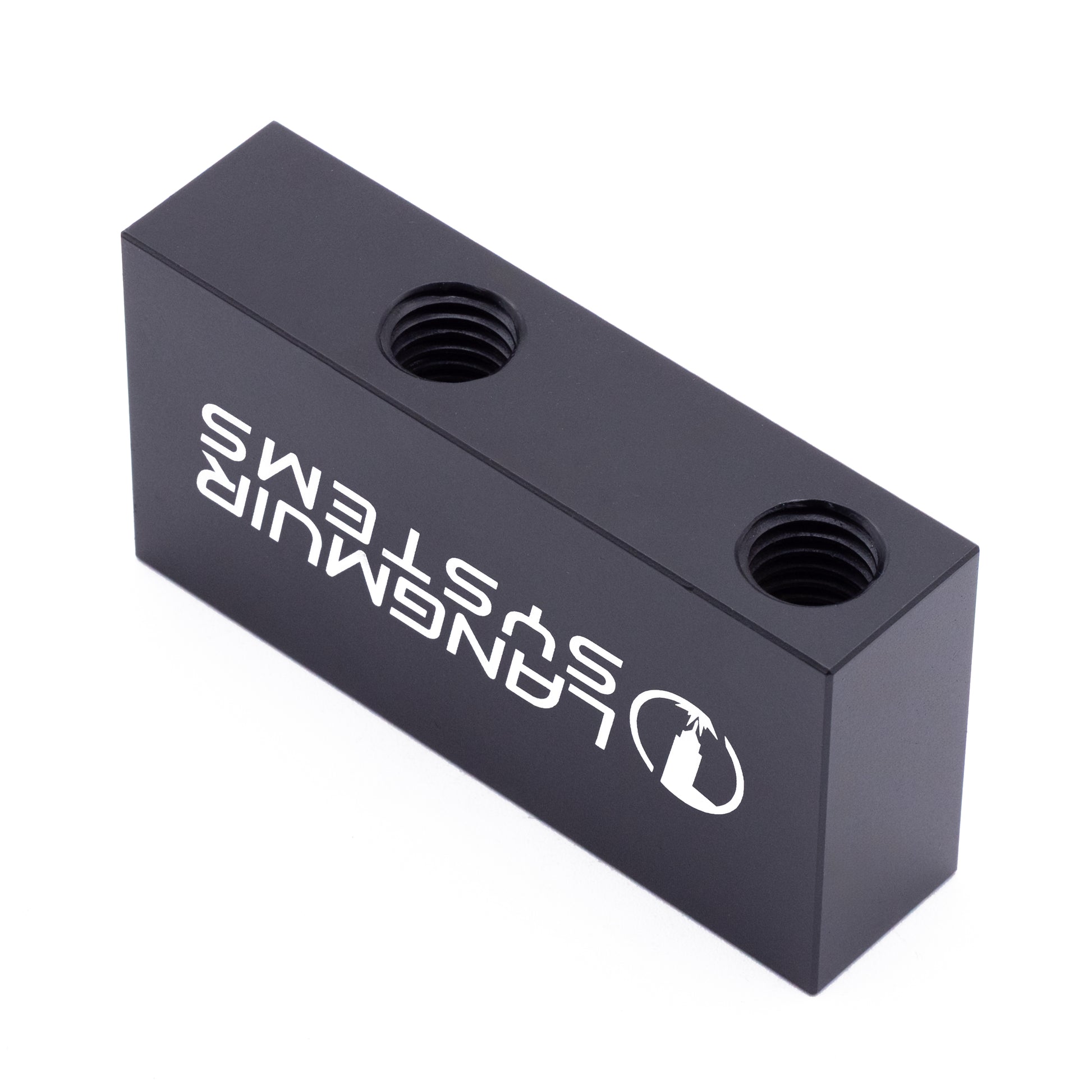

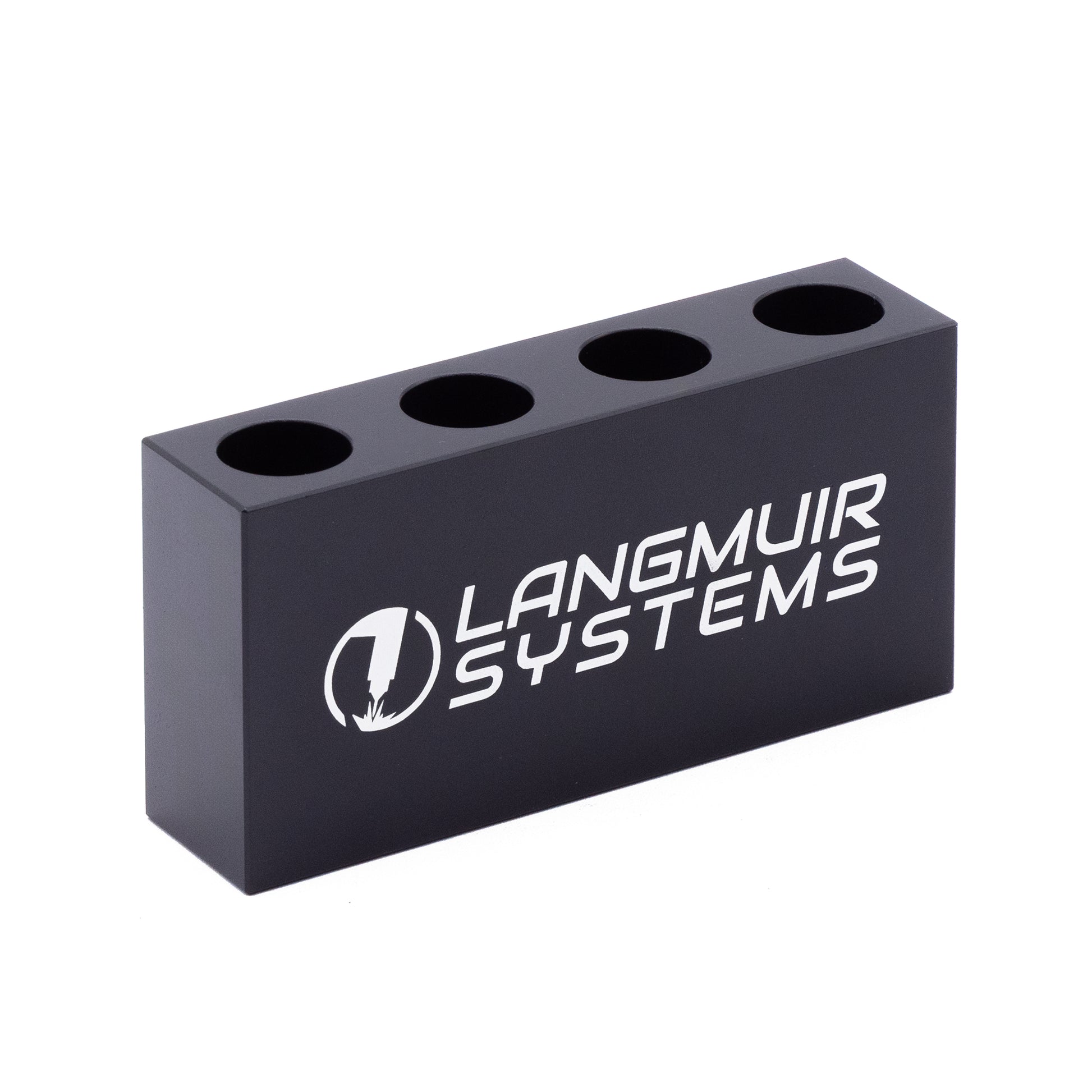

This taller layout block is precision-machined square and flat on all six sides for dependable part alignment, clamping, and repeatable setups. With threaded holes on the bottom and smooth holes multiple faces, it offers flexible fixturing options in both horizontal and vertical orientations.

Sized at 4" x 1" x 2", it gives you extra height compared to the 1" block—ideal for taller setups, bridging gaps, or stacking. Works with standard 5/8" fixture tables using 2" and 2.8" hole spacing. Mountable at 0°, 45°, and 90° on ArcFlat and similar tables.

Highlights:

  • Precision-machined on all six sides for square setups
  • Threaded holes for use with 5/8" alignment pins
  • Compatible with 5/8" tables (2" and 2.8" spacing)
  • Can be positioned at 0°, 45°, or 90°
  • Taller profile for extended reach or elevated fixturing

Note: 5/8" threaded pins sold separately.

Explore More: For full specifications or to browse compatible tools and add-ons, visit the ArcFlat product page. See how our fixturing solutions can improve your welding accuracy, repeatability, and productivity.
